Introduction

Exporting charts as images can be useful for presenting, sharing, printing or keeping digital records of your charts. To ensure the most versatile use, exporting should meet certain criteria:

  • Useful format - Offers popular and easily accessible format types such as SVG or PDF.
  • High quality output - Requirements may vary depending on the use case, but digital use may require high resolution or vector quality.
  • Customisability - The content being exported should be customisable e.g. to fit the size needs or to integrate into reports or presentations.

The chart.export() function offers all of the above in both raster (PNG, JPEG) and vector (SVG, PDF) format. You can get started with export in our Export Chart demo.

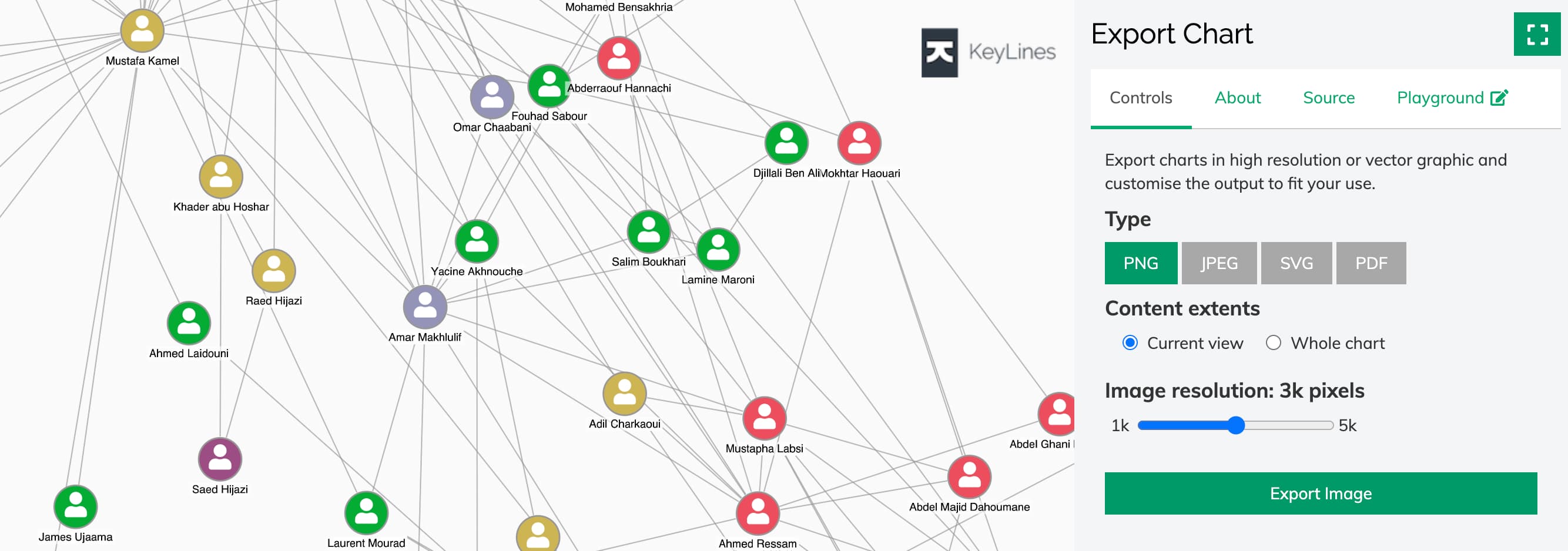

a screenshot from KeyLines Export Chart demo capturing the demo controls tab

The chart.export function also supports exporting to PDF document format. For more details, read through our PDF Export documentation and see the PDF Reports demo.

Exporting to image formats

The chart.export() function offers export to PNG, JPEG and SVG image file formats. For more details about exporting to PDF document format, see a separate PDF Export page.

chart.export({
  type: 'png',
  extents: 'chart',
  fitTo: { width: 4000, height: 4000 },
}).then((exportResult) => {
  // do more after export
});

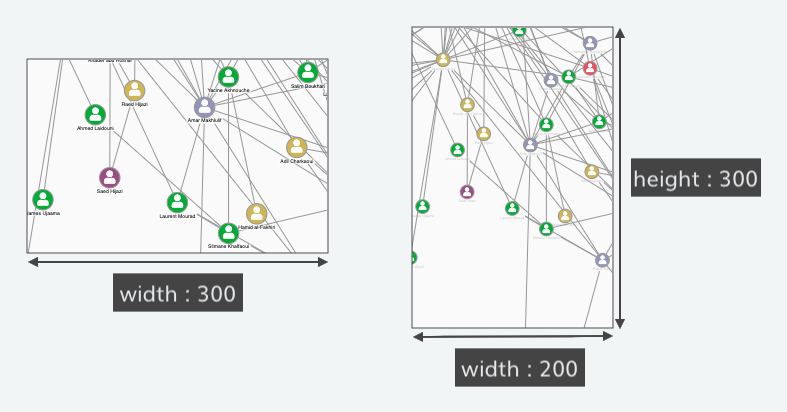

images comparing aspect ratios when either width or both width and height are set

The extents option lets you specify the exported content:

  • 'view' - exports the current on-screen view, where the default aspect ratio is determined by the on-screen view
  • 'chart' - exports the whole chart, where the default aspect ratio is determined by the whole chart

The fitTo option allows you to change width and height, changing the size and aspect ratio of the image:

  • one dimension specified - the exported image is scaled to match this size while keeping the aspect ratio determined by extents
  • both dimensions specified - the exported image scales within the maximum limits given by the dimensions and if needed, additional content is added to fill the entire aspect ratio

Note that when integrating with Leaflet, exporting chart on a map behaves slightly differently:

  • The extents option is ignored and KeyLines always generates the on-screen view of the chart.
  • The fitTo option is ignored and the output size always corresponds to the size of the on-screen view.
Notes:
  • As a vector format, SVG lets users zoom in to see additional detail. To ensure this information isn't lost, the adaptiveStyling option is not applied during the export to SVG.
  • For PNG and JPEG, adaptive styling depends on the output size. Increasing the size increases the image resolution, displays more details and keeps items looking sharp during zooming. The maximum resolution that can be successfully exported is determined by the combination of device/OS/browser and memory available.
  • Exporting charts on a map when integrating with Leaflet may exclude items from some custom Leaflet layers, including markers and shadows.

Exporting charts with multiple SVGs

If you are exporting into SVG and your charts include multiple different SVG images, make sure that SVG elements such as mask or pattern that have id property specified do not use duplicate ids between different SVG images.

Font embedding in SVG

If you are exporting into SVG and your charts use custom fonts or font icons, you need to embed the appropriate font files for the items to be displayed correctly in the output:

chart.export({
  type: 'svg',
  fonts: {
    'Font Awesome 5 Free Regular': { src: 'path/to/fonts/fontAwesome5/fa-regular-400.woff' },
    Raleway: { src: 'path/to/fonts/Raleway/Raleway-Regular.ttf' },
  },
}).then((exportResult) => {
  // do more after export
});

The fonts option takes a dictionary of font files to embed in the output indexed by font name. The entry for each font is an object with a single key src, the value of which specifies the URL or base64 encoding of .woff or .ttf font file.

To help optimise the size of the output, KeyLines will only embed the font files which are required for any fonts, font icons and characters to be rendered correctly. Missing font files will populate warnings in the result object. KeyLines will replace unavailable fonts with ‘sans-serif’ and embed unavailable font icons as PNG images.

To further improve loading performance and output size, you can also bundle font icons from multiple font families. See Slow loading performance when using multiple font families.
